TRUSTEC MOTOR YOUR TRUSTED FACTORY
Sales & Support:
 |
| Place of Origin: | Changzhou, China |
| Brand Name: | trusTec |
| Certification: | CE、UL529388 |
| Model Number: | YDK-75-6A9-CWL |
| Minimum Order Quantity: | 200 pcs |
|---|---|
| Price: | Negotiable (FOB/CNF/CIF) |
| Packaging Details: | Standard carton packing, foam board inside for protection. |
| Delivery Time: | 15 days fresh products after order confirmation. |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 pcs per month |

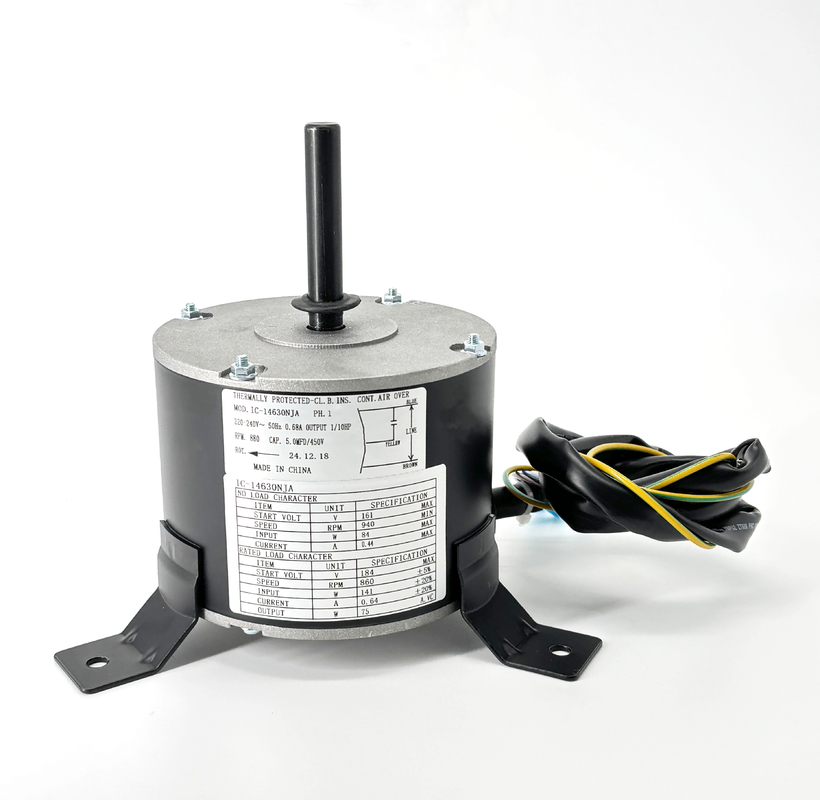

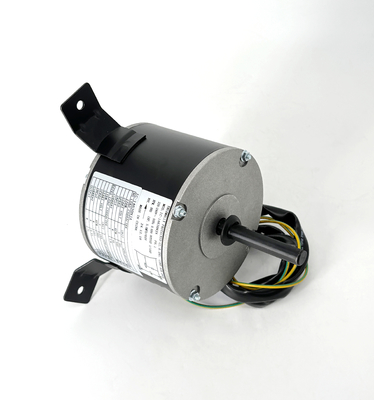

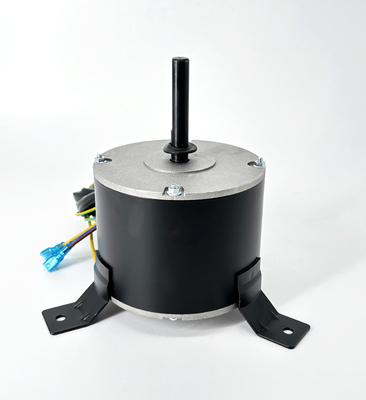

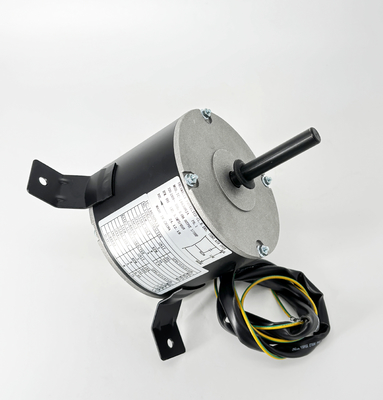

| Product: | Indoor Fan Motor | Frame Size: | 120mm |
|---|---|---|---|
| Motor Type: | Permanent Split Capacitor | Supply Voltage: | 220V-240V |
| Enclosure Type: | TEAO(Totally Enclosed Air Over) | Supply Frequency: | 50Hz |
| Thermal Overload: | Equipped With An Automatic Thermal Overload | Current: | 0.68A |
| Phase: | Single Phase | Output HP: | 1/10HP |
| Mounting: | Stud Mounting All Angel | Rated Speed: | 880RPM |
| Bearings: | Ball Bearing | Capacitor: | 5μF/450V |
| Rotation: | CW-SE | Shaft Diameter: | 0.5" / 12.7mm |
| Max. Ambient Temperature: | 40℃/104℉ | Lead Length: | 35.4" / 900mm |
| Insulation Class: | Class B | ||
| Highlight: | Condenser Fan Motor 75W,Condenser Fan Motor 880RPM,50Hz Hvac Condenser Motor |
||
