TRUSTEC MOTOR YOUR TRUSTED FACTORY
Sales & Support:
 |
| Place of Origin: | Changzhou, China |
| Brand Name: | trusTec |
| Certification: | CE |
| Model Number: | YDK-125-6A55-CWL |
| Minimum Order Quantity: | 200 pcs |
|---|---|
| Price: | Negotiable (FOB/CNF/CIF) |
| Packaging Details: | Standard carton packing, foam board inside for protection. |
| Delivery Time: | 15 days fresh products after order confirmation. |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 pcs per month |

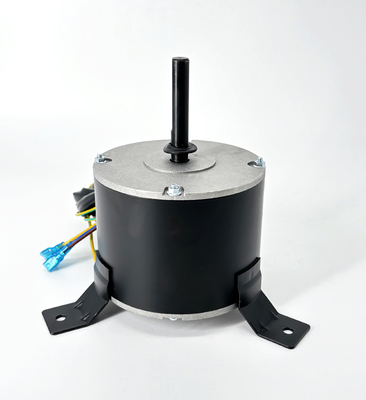

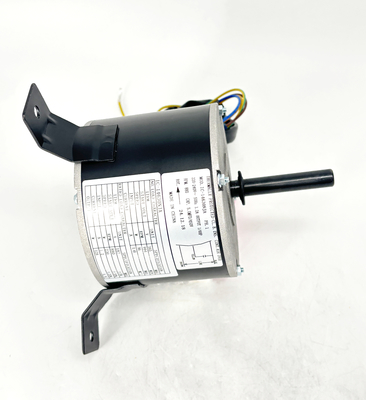

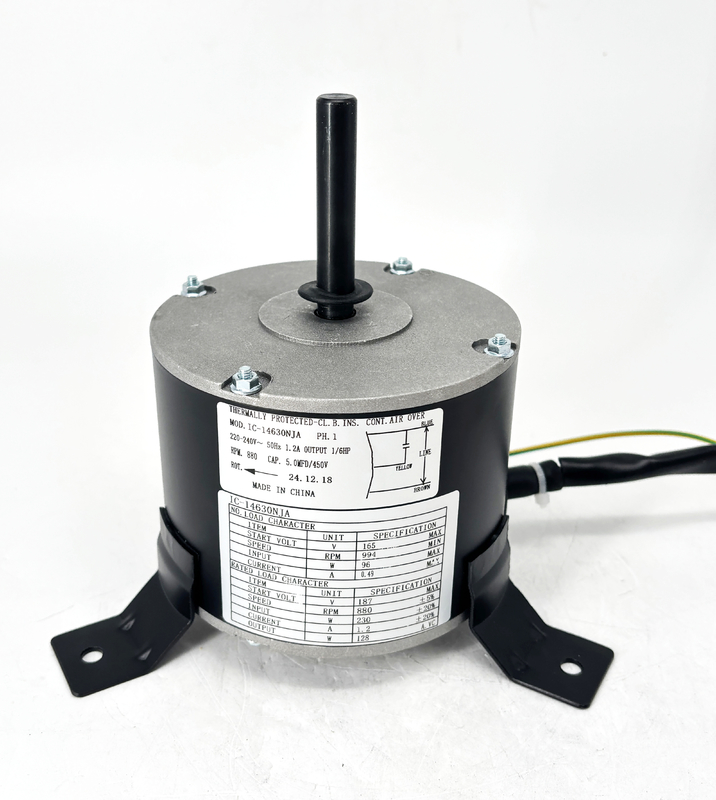

| Product: | Condenser Fan Motor | Frame Size: | 120mm |
|---|---|---|---|
| Motor Type: | Permanent Split Capacitor | Supply Voltage: | 220-240V |
| Enclosure Type: | TEAO(Totally Enclosed Air Over) | Supply Frequency: | 50Hz |
| Thermal Overload: | Equipped With An Automatic Thermal Overload | Current: | 1.2A |
| Phase: | Single Phase | Output HP: | 1/6HP |
| Shaft Flats: | One Flat | Rated Speed: | 880RPM |
| Mounting: | Stud Mounting All Angel | Shaft Diameter: | 0.5" /12.7mm |
| Bearings: | Ball Bearing | Lead Length: | 35.4" / 900mm |
| Rotation: | CW-SE | Capacitor: | 5μF/450V |
| Insulation Class: | Class B | Max. Ambient Temperature: | 40℃/104℉ |
| Highlight: | 1/4HP Condenser Fan Motor,575V Condenser Fan Motor,48 Frame Condenser Fan Motor |
||
